Guangzhou Xingjin Fire Equipment Co.,Ltd. info@xingjin-fire.com 86--18011936582
製品詳細
起源の場所: 広州、中国
ブランド名: XINGJIN
証明: GSG\TUV\ I S O 9 0 0 1, 1 4 0 0 1, 4 5 0 0 1
モデル番号: xj100h/n; xj200h/n; xj300h/n; xj400h/n; xj500h/n
支払いと送料の条件
最小注文数量: 10セットシステム
価格: Pricing based on quantity
パッケージの詳細: バブルバッグまたは紙の付いた合板の外側の箱
受渡し時間: 15-20日
支払条件: T/T、L/C
供給の能力: 30000set/月
タイプの代理店: |
HFC-227EA/ Novec 1230 |
チューブの直径（mm）: |
18 |
作業温度（℃）: |
-40から80まで |
爆破温度（℃: |
110±10 |
タイプの代理店: |
HFC-227EA/ Novec 1230 |
チューブの直径（mm）: |
18 |
作業温度（℃）: |
-40から80まで |
爆破温度（℃: |
110±10 |

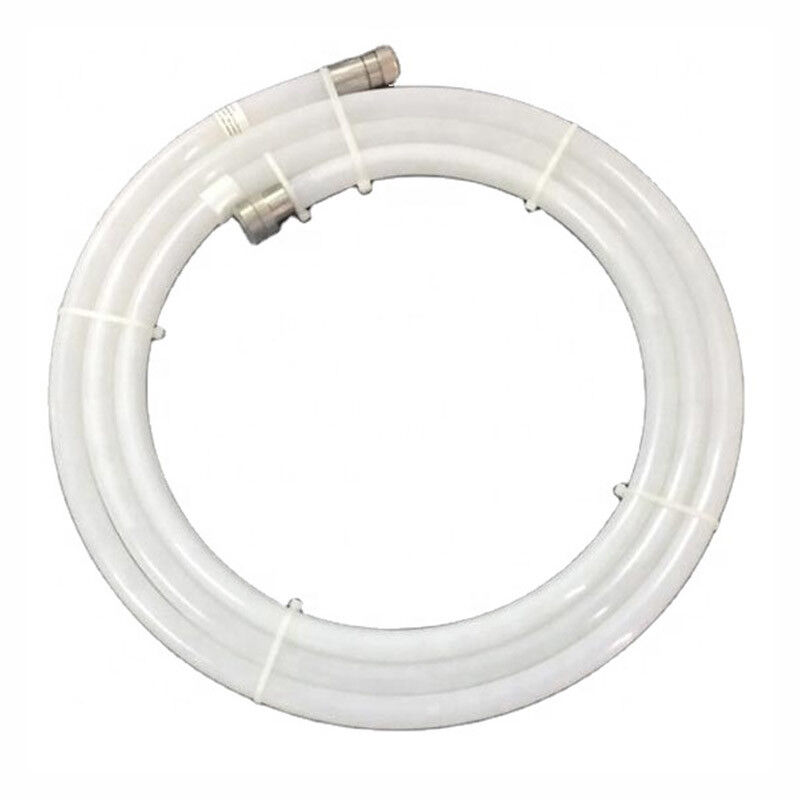

Automatic Fire Suppression Tube
Description:
Automatic fire suppression system consists of metal and plastic parts. Automatic fire suppression system is designed for protection of small enclosures with greater risk of fire. It operates automatically without any power supply by detecting higher temperature. When temperature in the protected enclosure rises to a critical threshold, the detection tube melts down at the point where affecting temperature is
the highest. Melting the tube creates a “nozzle” releasing the entire extinguishing agent stored in the tube directly onto the source of the fire.
|
Compositions: Pressure tube, fire extinguishing agent--HFC-227ea or Novec1230, pressure gauge, pipe fittings |
|
| Model | Type of agent | Amount of agent(g) | Length of tube(cm) | Diameter of tube(mm) |
Approximate maximum coverage (cubic meter) |
Working temperature(℃) | Blasting temperature(℃) |
| XJ100H/N | 250±5 | 100 | 18 | 0.25 | From -40 to 80 | 110±10 | |
| XJ200H/N | Hfc-227ea/ Novec 1230 |
500±5 | 200 | 18 | 0.5 | From -40 to 80 | 110±10 |
| XJ300H/N | 750±10 | 300 | 18 | 0.75 | From -40 to 80 | 110±10 | |
| XJ400H/N | 1000±10 | 400 | 18 | 1 | From -40 to 80 | 110±10 | |
| XJ500H/N | 1250±10 | 500 | 18 | 1.25 | From -40 to 80 | 110±10 |
|
Application and Advantages: Based on the volume of protected enclosure, the tubes are suitable for the ranges but even more than those: |
|
Packaging and Shipping for Inert Gas Fire Suppression System
Packaging:
The Inert Gas Fire Suppression System will be carefully packaged to ensure safe delivery and handling. The packaging will consist of the following materials:Heavy-duty cardboard box,Bubble wrap,Protective foam inserts,Instruction manual
Shipping:
We offer worldwide shipping for our Inert Gas Fire Suppression System. The following shipping options are available:
All shipments will be sent using a reliable and trusted courier service to ensure timely and secure delivery.Customers will receive a tracking number via email once their order has been shipped.
Special Handling Instructions:
If there are any special handling instructions for your shipment, please contact us at least 24 hours before your order is shipped. We will do our best to accommodate your request.
Why Choose Us
